| ISG型系列单级管道离心泵性能参数表（1） |
|
点击次数：7204 来源网站：www.quandabf.com 发布时间：2013-09-11 |
|

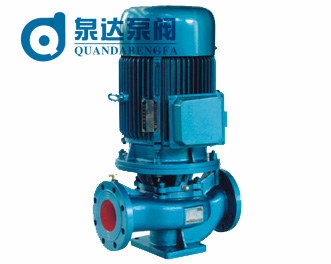

管道离心泵中需求较多的ISG型系列单级管道离心泵，是永嘉泉达泵阀制造有限公司科技人员联合国内水泵专家选用国内优秀水力模型，采用IS型离心泵之性能参数，在一般立式泵的基础上进行巧妙组合设计而成，同时根据使用温度、介质等不同在ISG型基础上派生出适用热水、高温、腐蚀性化工泵、油泵。该系列产品具有高效节能、噪音低、性能可靠等优点。
|
流量Q
|
扬程
H
(m)
|
效率
η
(%)
|
电机
功率
P
(KW)
|
转速
n
(r/min)
|
必需汽
蚀余量
(NPAH)r
(m)
|
重量
(kg)
|
|
(m3/h)
|
(L/s)
|
|
25-110 |
2.8
|
0.78
|
16
|
34
|
0.55
|
2900
|
2.3
|
33
|
|
4
|
1.11
|
15
|
42
|
|
5.2
|
1.44
|
13.5
|
41
|
|
25-125 |
2.8
|
0.78
|
20.6
|
28
|
0.75
|
2900
|
2.3
|
37
|
|
4
|
1.11
|
20
|
36
|
|
5.2
|
1.44
|
18
|
35
|
|
25-125A |
2.5
|
0.69
|
17
|
27
|
0.75
|
2900
|
2.3
|
37
|
|
3.6
|
1.0
|
16
|
35
|
|
4.6
|
1.28
|
14.4
|
34
|
|
25-160 |
2.8
|
0.78
|
33
|
24
|
1.5
|
2900
|
2.3
|
46
|
|
4
|
1.11
|
32
|
32
|
|
5.2
|
1.44
|
30
|
33
|
|
25-160A |
2.6
|
0.72
|
28.5
|
22
|
1.1
|
2900
|
2.3
|
42
|
|
3.7
|
1.03
|
28
|
31
|
|
4.9
|
1.36
|
26
|
29
|
|
32-100 |
3.5
|
0.97
|
13.5
|
40
|
0.55
|
2900
|
2.3
|
37
|
|
4.5
|
1.25
|
12.5
|
47
|
|
5.3
|
1.47
|
11.3
|
43
|
|
32-100(I) |
4.4
|
1.22
|
13.2
|
48
|
0.75
|
2900
|
2.0
|
40
|
|
6.3
|
1.75
|
12.5
|
54
|
|
8.3
|
2.32
|
11.3
|
53
|
|
32-125 |
3.5
|
0.97
|
22
|
40
|
0.75
|
2900
|
2.3
|
40
|
|
5
|
1.39
|
20
|
44
|
|
6.5
|
1.80
|
18
|
42
|
|
32-125A |
3.1
|
0.86
|
17.6
|
39
|
0.75
|
2900
|
2.3
|
39
|
|
4.5
|
1.25
|
16
|
43
|
|
5.8
|
1.61
|
14.4
|
41
|
|
32-160 |
3.5
|
0.97
|
33
|
30
|
1.5
|
2900
|
2.3
|
51
|
|
4.5
|
1.25
|
32
|
35
|
|
6
|
1.67
|
30
|
33
|
|
32-160A |
3.5
|
0.97
|
26.5
|
29
|
1.1
|
2900
|
2.3
|
45
|
|
4.5
|
1.25
|
25
|
34
|
|
6
|
1.67
|
23
|
32
|
|
32-160(I) |
4.4
|
1.22
|
33.2
|
|
2.2
|
2900
|
2.3
|
55
|
|
6.3
|
1.75
|
32
|
|
8.3
|
2.32
|
30.2
|
|
32-200 |
3.5
|
0.97
|
51
|
27
|
3
|
2900
|
2.3
|
71
|
|
4.5
|
1.25
|
50
|
32
|
|
5.5
|
1.53
|
48
|
30
|
|
32-200A |
3.9
|
1.08
|
41
|
26
|
3
|
2900
|
2.3
|
61
|
|
4
|
1.11
|
40
|
31
|
|
4.2
|
1.17
|
48
|
29
|
|
32-200(I) |
4.4
|
1.22
|
50.5
|
26
|
4
|
2900
|
2.3
|
76
|
|
6.3
|
1.75
|
50
|
33
|
|
8.3
|
2.32
|
48
|
35
|
|
40-100 |
4.4
|
1.22
|
13.2
|
48
|
0.55
|
2900
|
2.3
|
34
|
|
6.3
|
1.75
|
12.5
|
54
|
|
8.3
|
2.31
|
11.3
|
53
|
|
40-100A |
3.9
|
1.08
|
10.6
|
52
|
0.37
|
2900
|
2.3
|
25
|
|
5.6
|
1.56
|
10
|
|
7.4
|
2.06
|
9
|
|
40-125 |
4.4
|
1.22
|
21
|
41
|
1.1
|
2900
|
2.3
|
35
|
|
6.3
|
1.75
|
20
|
46
|
|
8.3
|
2.31
|
18
|
43
|
|
40-125A |
3.9
|
1.08
|
17.6
|
40
|
0.75
|
2900
|
2.3
|
31
|
|
5.6
|
1.56
|
16
|
45
|
|
7.4
|
2.06
|
14.4
|
41
|
|
40-160 |
4.4
|
1.22
|
33
|
35
|
2.2
|
2900
|
2.3
|
50
|
|
6.3
|
1.75
|
32
|
40
|
|
8.3
|
2.31
|
30
|
40
|
|
40-160A |
4.1
|
1.14
|
29
|
34
|
1.5
|
2900
|
2.3
|
44
|
|
5.9
|
1.64
|
28
|
39
|
|
7.8
|
2.17
|
26.3
|
39
|
|
40-160B |
3.8
|
1.06
|
25.5
|
34
|
1.1
|
2900
|
2.3
|
37
|
|
5.5
|
1.53
|
24
|
38
|
|
7.2
|
2.0
|
22.5
|
37
|
|
40-200 |
4.4
|
1.22
|
51
|
26
|
4.0
|
2900
|
2.3
|
76
|
|
6.3
|
1.75
|
50
|
33
|
|
8.3
|
2.31
|
48
|
32
|
|
40-200A |
4.1
|
1.14
|
45
|
26
|
3.0
|
2900
|
2.3
|
64
|
|
5.9
|
1.64
|
44
|
31
|
|
7.8
|
2.17
|
42
|
30
|
|
40-200B |
3.7
|
1.03
|
38
|
25
|
2.2
|
2900
|
2.3
|
54
|
|
5.3
|
1.47
|
36
|
29
|
|
7.0
|
1.94
|
34.5
|
28
|
|
40-250 |
4.4
|
1.22
|
82
|
24
|
7.5
|
2900
|
2.3
|
108
|
|
6.3
|
1.75
|
80
|
28
|
|
8.3
|
2.31
|
74
|
28
|
|
40-250A |
4.1
|
1.17
|
72
|
24
|
7.5
|
2900
|
2.3
|
100
|
|
5.9
|
1.64
|
70
|
28
|
|
7.8
|
2.17
|
65
|
27
|
|
40-250B |
3.8
|
1.06
|
61.5
|
23
|
4.0
|
2900
|
2.3
|
80
|
|
5.5
|
1.53
|
60
|
27
|
|
7.0
|
1.94
|
56
|
26
|
|
40-100(I) |
8.8
|
2.44
|
13.2
|
55
|
1.1
|
2900
|
2.3
|
36
|
|
12.5
|
3.47
|
12.5
|
62
|
|
16.3
|
4.53
|
11.3
|
60
|
|
40-100(I)A |
8
|
2.22
|
10.6
|
54
|
0.75
|
2900
|
2.3
|
34
|
|
11
|
3.05
|
10
|
60
|
|
14.5
|
4.03
|
9
|
58
|
|
|
|
